About my van conversion

Van Specs

2018 Ford Transit 250 Cargo Van
Medium Roof
148” Wheelbase
3.7L TIVCT V6 Engine
6-Speed Auto Select Shifter TR
Current mileage: 6,525 miles

Notable Features

Electrical

The battery base can fit 2 auxiliary batteries, currently a single 100 AMP auxiliary battery is seated and tied down with Ratchet Tie Down Straps hooked onto anchors. The Tie Down Anchors are bolted through the van floor for safety (I wish more builders would do this, a 50 lb projectile would be very lethal). The bolt is secured by a washer, spring washer, jam nut and loctite threadlocker.

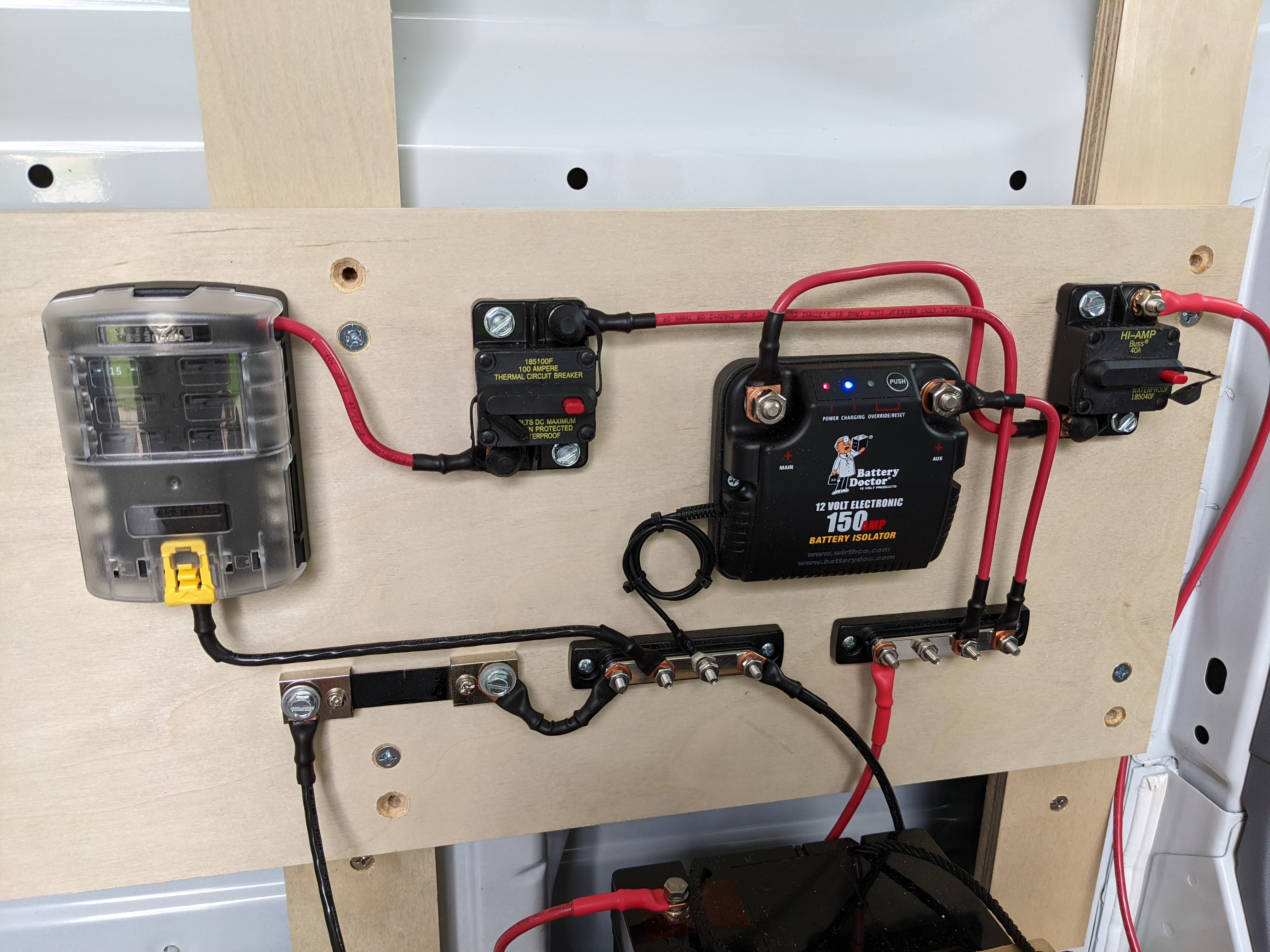

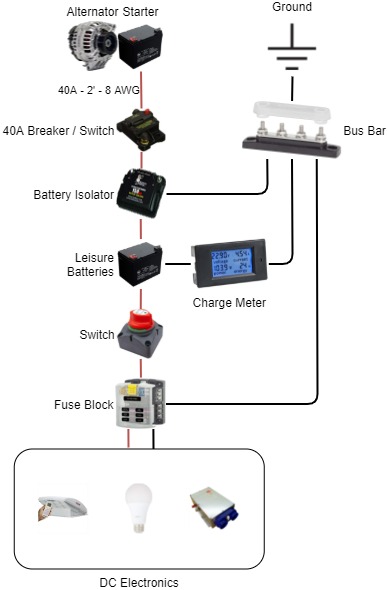

The auxiliary battery is charged by the alternator through the Ford CCP (Customer Connection Point). Between the CCP is a 40 AMP Circuit Breaker and a Battery Isolator. Another switch is placed between the auxiliary battery and the Fuse Block. Two Bus Bars support the negative and positive connections. An LCD Voltmeter Display allows us to monitor the health of the auxiliary battery.

Initially I planned to set the auxiliary battery to be in the rear of the van, after measuring the distance from the Ford CCP, a lower gauge wire was required to span the distance. However the wire from the alternator to the Ford CCP should also be considered, if the wire from the alternator to the CCP cannot support the current due to the increased resistance from the added distance from the alternator to the auxiliary batteries, there could be a major problem. So I opted to keep the distance short and placed the battery near the CCP.

Flooring

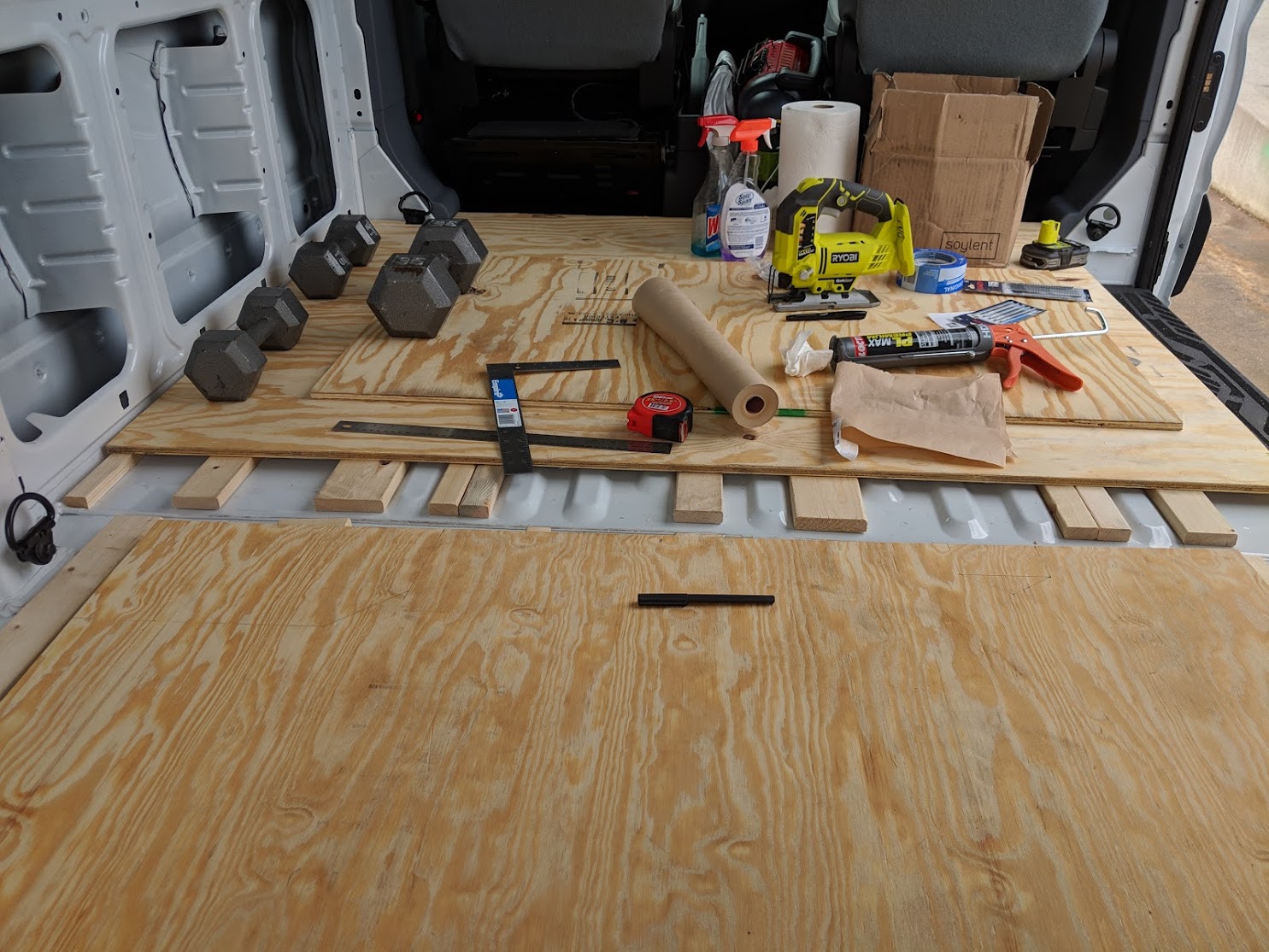

Wooden slats were adhered using Loctite Construction Adhesive to the floor of the van

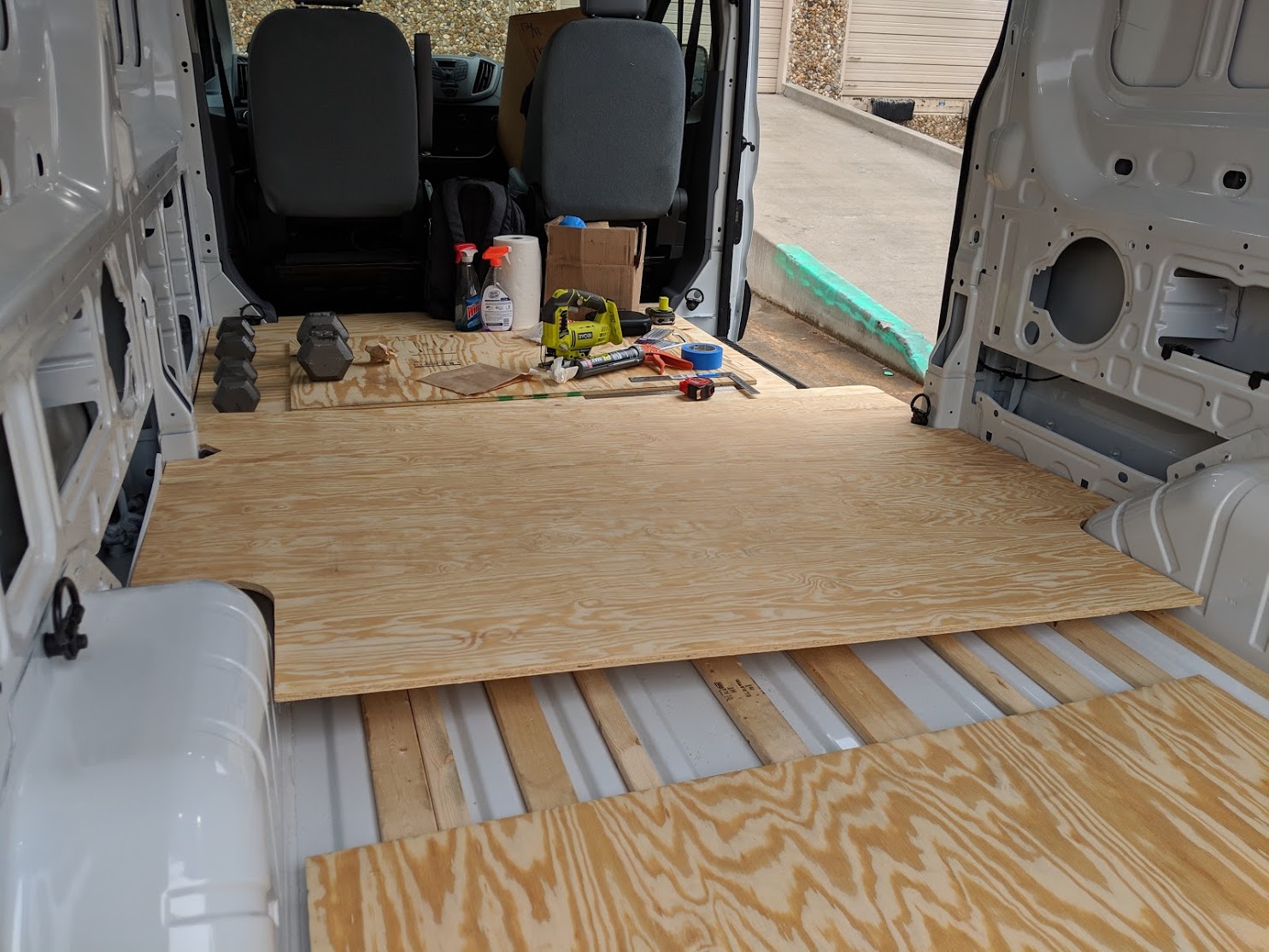

3/4” Plywood was cut to fit and screwed into the slats Vinyl Sheet Flooring was cut to fit and adhered to the plywood using Roberts 7350 Flooring Adhesive

Walls

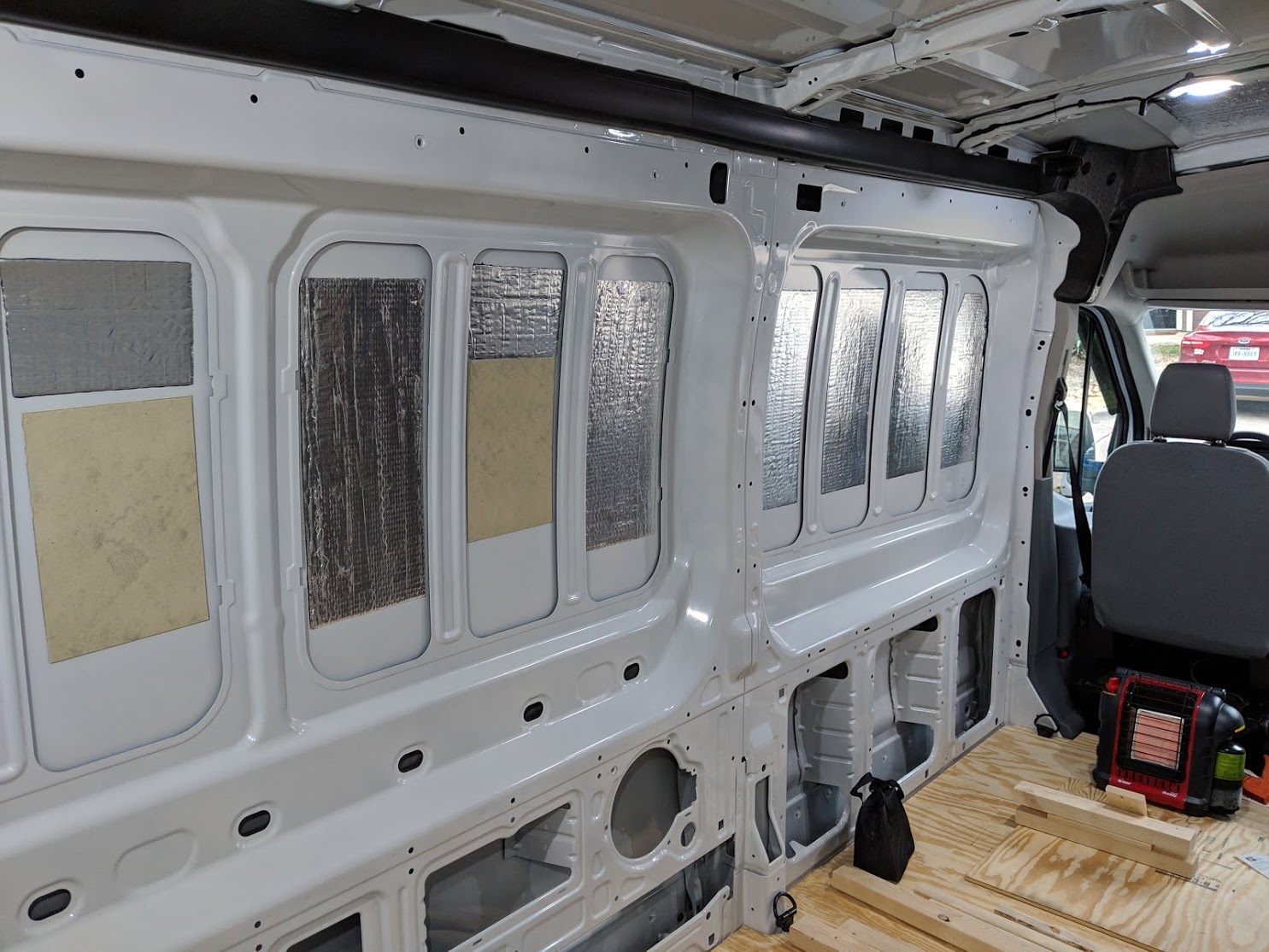

Butyl Automotive Sound Deadener was heated to spec and pressed into exposed areas of the van walls
Once the framing is complete, walls will go up
Work in progress

Ceiling

The Maxxfan Deluxe was initially planned to be installed closer to the rear of the van, but that required cutting into the structural ribs in the ceiling of the van, so the fan was moved forward. Currently it sits just above the end of where the bed would be positioned. The Maxxfan Deluxe sits on a wooden Vent Adapter, this not only provides a foundation for the fan but also protects the fan from the shifting stresses of the sheet metal, the drawback is the fan sits about an inch taller, longevity is worth the offset.

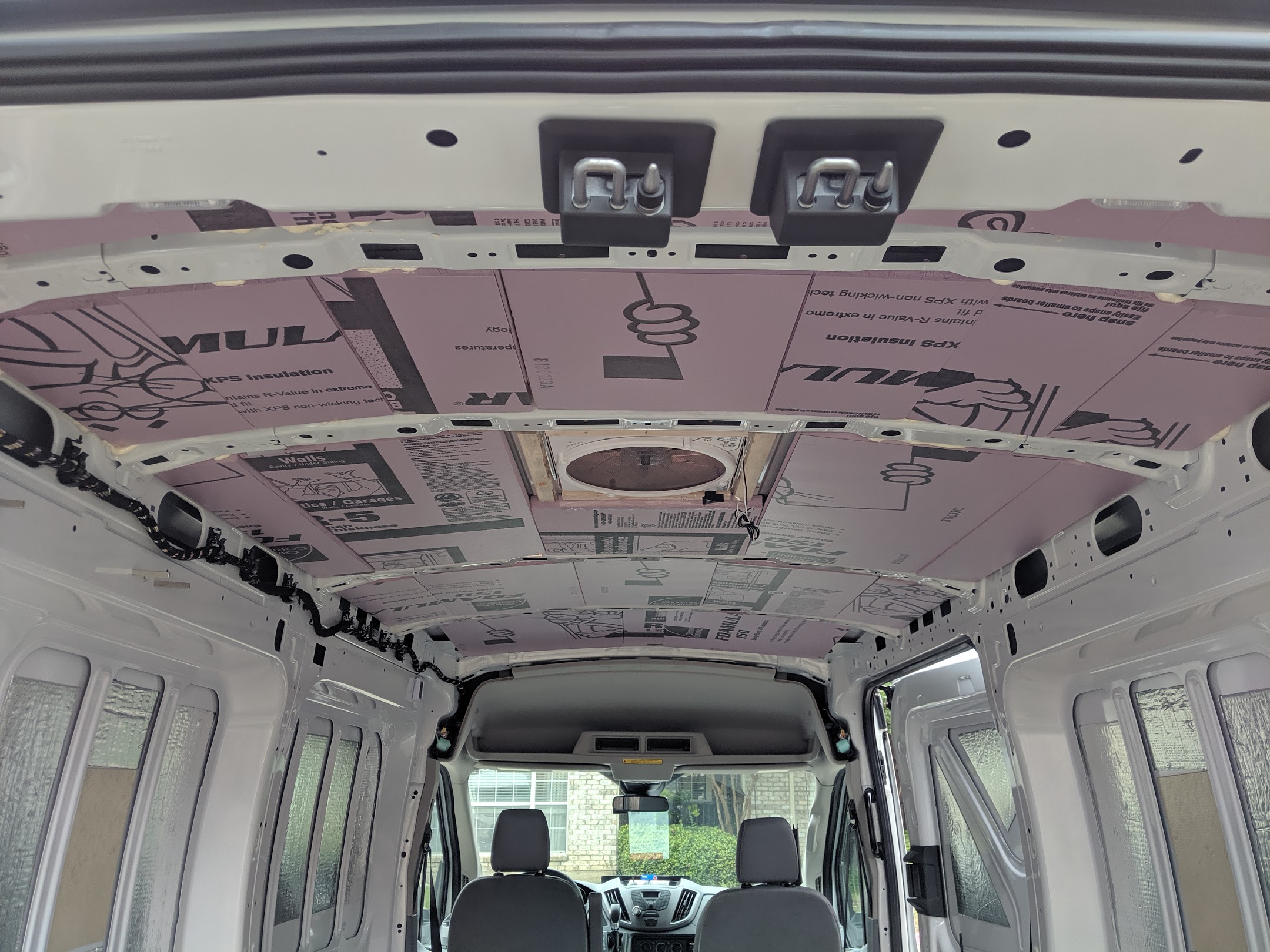

XPS foam insulation was cut, fitted and adhered using foam board adhesive and foam sealant, more details about my thoughts on insulation below.

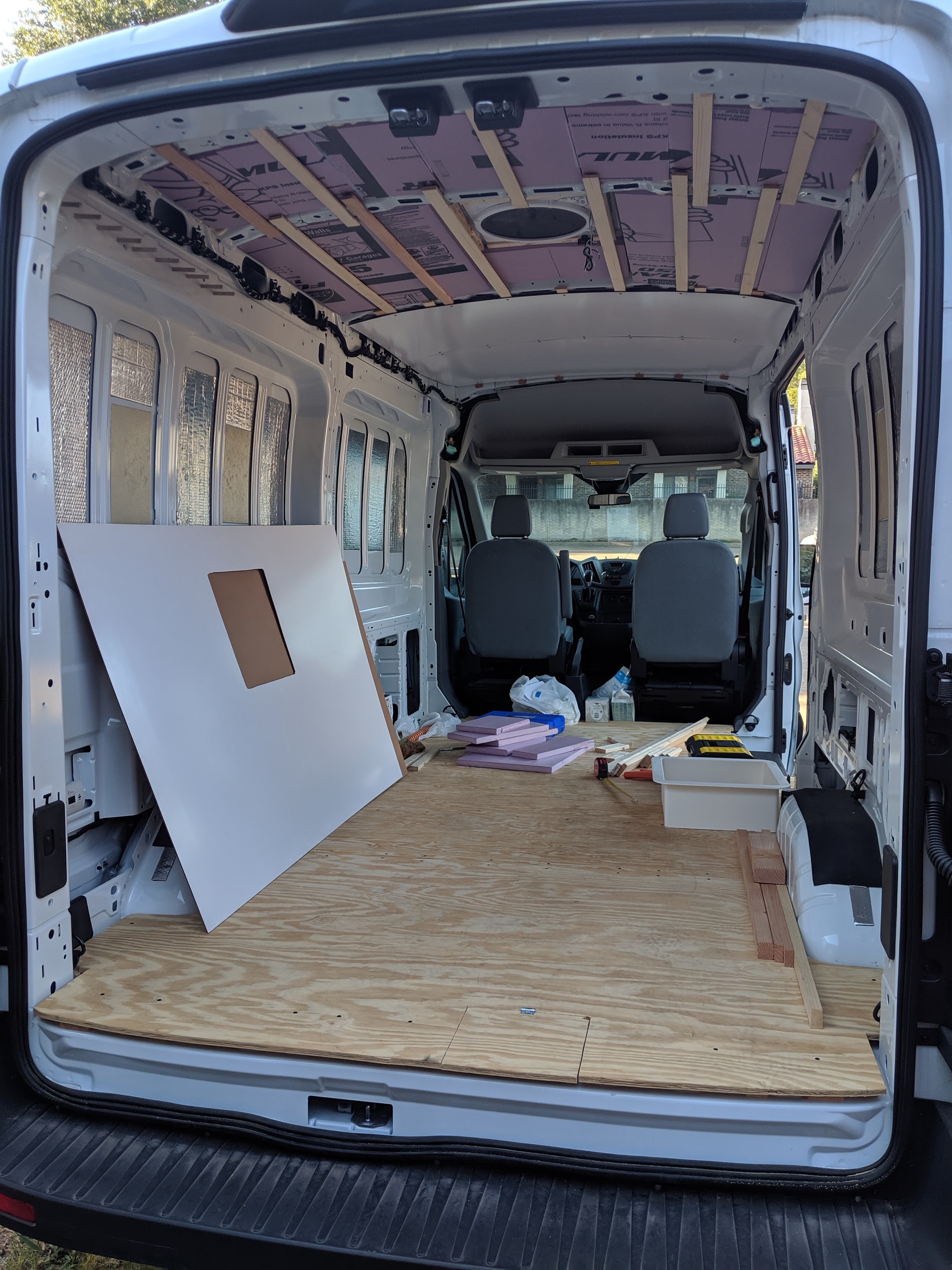

In order to maximize vertical space, 0.5” slats were cut from lumber using a table saw and adhered with construction adhesive to the ceiling ribs. White hardboard similar to this was cut to fit and screwed into the slats. The adhesion is very strong and was capable of supporting weight > 50 lbs next to the ribs. However my greatest regret is not waiting to find a transit with the high roof instead of medium roof, high roof was very scarce at the time of purchase.

Link to video testing the fan during rain
Testing fan

Framing

Work in progress

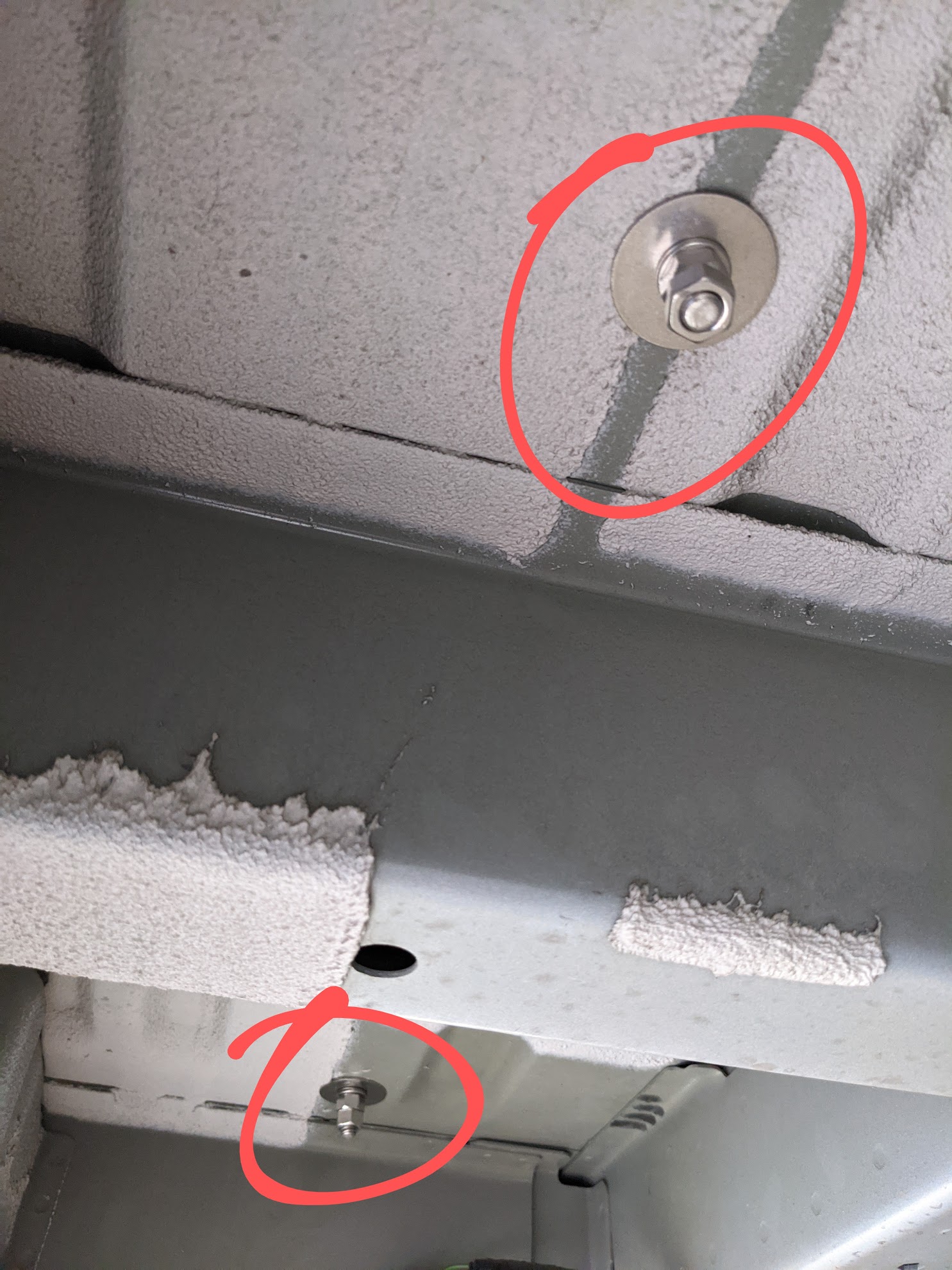

3/4” Birch Plywood cut in slats secured with
Stainless 1/4-20 Machine Screws screwed into
Steel Rivet Nuts installed with
Astro 1442 Rivet Nut Setter that were set into pre-existing holes by Ford

I used Birch Plywood due to its high density and tensile strength, it’s also a relatively nice wood commonly used in furniture. I ended up buying a 40-tooth blade for a cleaner cut and was happy with the results.

Insulation

XPS foam insulation was initially installed on the ceiling using foam board adhesive and foam sealant on adjacent sides of the foam board. Reason being to avoid an airtight foam board installation; allowing the gaps between the board and sheet metal to breath. This is counter-intuitive to insulation but I was afraid of moisture being trapped within these gaps resulting in the inevitable growth of mold. I ended up removing a couple panels next to the ceiling fan while diagnosing a squeak and left the remaining panels in. The squeak was from vibrations in the fan, which I ended up dampening by reinforcing underneath the fan with wooden slats.

Previous build

My first van conversion was on a 2017 Chevy City Express (left vehicle in image), it was a simple build with XPS insulation on the ceiling and extendable bed frame supporting a twin mattress with storage underneath. I took it up to Breckenridge, CO and realized I wanted something with more space where I could stretch my legs and walk around inside.
